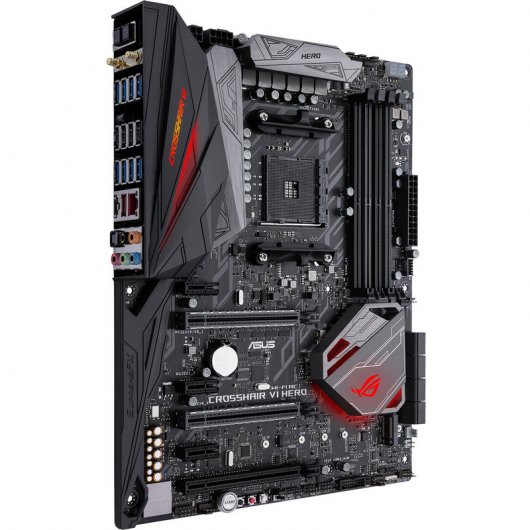

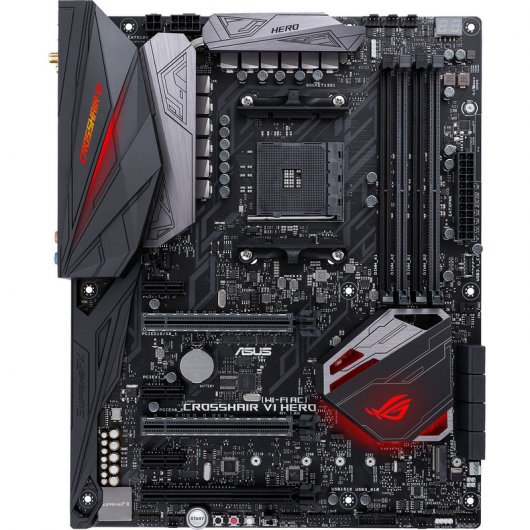

Asus ROG Crosshair VI Hero WIFI AC

Te presentamos la Asus ROG Crosshair VI Hero en su versión WI-FI AC, una placa base con socket AMD AM4 y chipset X370

Especificaciones:

• CPU
  • AMD AM4 Socket for AMD Ryzen™/7th Generation A-series/Athlon™ Processors
  • Supports AM4 Socket 14 nm CPU
  • Supports CPU up to 8 cores
  • * Refer to www.asus.com for CPU support list
• Chipset
  • AMD X370
• Memory
  • AMD Ryzen™ Processors
  • 4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/2666/2400(O.C.)/2133(O.C.) MHz ECC and non-ECC, Un-buffered Memory *
  • AMD 7th Generation A-series/Athlon™ Processors
  • 4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory *
  • Dual Channel Memory Architecture
  • * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Multi-GPU Support
  • Supports NVIDIA® 2-Way SLI™ Technology *1
  • Supports AMD CrossFireX™ Technology
• Expansion Slots
  • AMD Ryzen™ Processors
  • 2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
  • AMD 7th Generation A-series/Athlon™ Processors
  • 1 x PCIe 3.0/2.0 x16 (x8 mode)
  • AMD X370 chipset
  • 1 x PCIe 2.0 x16 (max at x4 mode) *2
  • 3 x PCIe 2.0 x1
• Storage
  • AMD Ryzen™ Processors :
  • 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
  • AMD 7th Generation A-series/Athlon™ Processors :
  • 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)
  • AMD X370 chipset :
  • 8 x SATA 6Gb/s port(s),
  • Support Raid 0, 1, 10
• LAN
  • Intel® I211-AT, 1 x Gigabit LAN Controller(s)
  • Anti-surge LANGuard
  • ROG GameFirst IV
• Wireless Data Network
  • Wi-Fi 802.11 a/b/g/n/ac
  • Supports dual band frequency 2.4/5 GHz
  • Supports MU-MIMO
  • Bluetooth
  • Bluetooth V4.1*3
• Audio
  • ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
  • - Impedance sense for front and rear headphone outputs
  • - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
  • - SupremeFX Shielding Technology
  • - ESS® ES9023P
  • - Supports up to 32-Bit/192kHz playback *4
  • Audio Feature :
  • - Gold-plated jacks
  • - Optical S/PDIF out port(s) at back panel
  • - Sonic Radar III
  • - Sonic Studio III
• USB Ports
  • AMD Ryzen™/7th Generation A-series/Athlon™ Processors :
  • 4 x USB 3.0 port(s) (4 at back panel, blue)
  • AMD X370 chipset :
  • 1 x USB 3.1 Gen 2 front panel connector port(s)
  • AMD X370 chipset :
  • 6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board)
  • AMD X370 chipset :
  • 6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board)
  • ASMedia® USB 3.1 controller :
  • 2 x USB 3.1 port(s) (2 at back panel, black+red, Type-A + USB Type-CTM)
• ROG Exclusive Features
  • Clear CMOS button
  • ROG RAMCache II
  • ROG CPU-Z
  • ROG CloneDrive
  • MemOK! Button
  • Slow Mode
  • Overwolf
  • ReTry Button
  • Safe Boot Button
  • Start Button
  • Reset Button
  • LN2 Mode
  • GameFirst IV
  • ROG Aura
  • - Aura Lighting Control
  • - Aura RGB Strip Headers
  • Extreme Engine Digi+ :
  • - MicroFine Alloy Chokes
  • - NexFET™ Power Block MOSFET
  • - 10K Black Metallic Capacitors
  • Mem TweakIt
  • KeyBot II
  • - One-click Overclocking
  • - ClrCMOS
  • - Power On
  • UEFI BIOS features :
  • - O.C. Profile
  • - Tweakers´ Paradise
  • - ROG SSD Secure Erase
  • - Graphic Card Information Preview
  • ROG RAMDisk
  • Extreme Tweaker
  • Loadline Calibration
  • USB BIOS Flashback
  • Special Features
  • ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
  • - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App
  • TPU
  • - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors
  • Gamer´s Guardian:
  • - SafeSlot
  • ASUS Exclusive Features :
  • - AI Suite 3
  • - Ai Charger
  • ASUS EZ DIY :
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 3
  • ASUS Q-Design :
  • - ASUS Q-Shield
  • - ASUS Q-Code
  • - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
  • - ASUS Q-DIMM
  • - ASUS Q-Connector

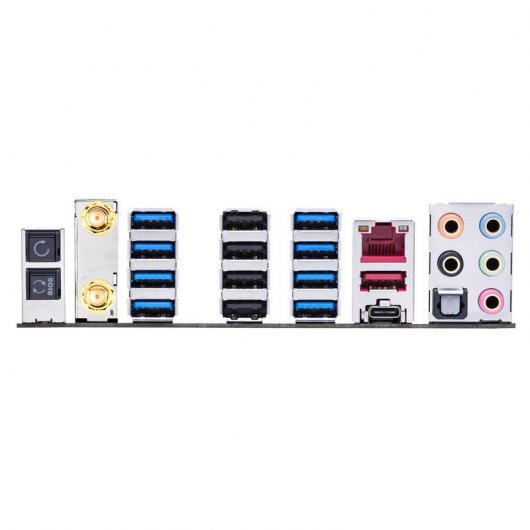

• Back I/O Ports
  • 1 x LAN (RJ45) port(s)
  • 4 x USB 2.0 (one port can be switched to USB BIOS Flashback)
  • 1 x Optical S/PDIF out
  • 5 x Audio jack(s)
  • 1 x Clear CMOS button(s)
  • 1 x USB BIOS Flashback Button(s)
  • 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.1)
  • 5 x Gold-plated audio jacks
  • 8 x USB 3.1 Gen 1 (blue)
  • 1 x USB 3.1 Gen 2 (red)Type-A
  • 1 x USB 3.1 (black)USB Type-CTM
• Internal I/O Ports
  • 2 x RGB Header(s)
  • 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support
  • 1 x TPM connector(s)
  • 8 x SATA 6Gb/s connector(s)
  • 1 x CPU Fan connector(s)
  • 1 x CPU OPT Fan connector(s)
  • 3 x Chassis Fan connector(s)
  • 1 x AIO_PUMP connector
  • 1 x W_PUMP+ connector
  • 1 x 8-pin EATX 12 V Power connector
  • 1 x 4-pin EATX 12 V_1 Power connector(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x Slow Mode switch(es)
  • 1 x Thermal sensor connector(s)
  • 1 x Reset button(s)
  • 1 x LN2 Mode switch(es)
  • 1 x ROG extension (ROG_EXT) header(s)
  • 1 x Safe Boot button
  • 1 x ReTry button
  • 1 x Slow Mode jumper(s)
  • 1 x System panel connector
  • 2 x 3D Mount screw port(s)
  • 1 x W_IN header
  • 2 x W_OUT header
  • 1 x W_FLOW header
  • 1 x Start button
  • 1 x USB 3.1 Gen 2 front panel connector
  • 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
  • 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
• Accessories
  • User´s manual
  • ASUS Q-Shield
  • 4 x SATA 6Gb/s cable(s)
  • 1 x M.2 Screw Package
  • 1 x Supporting DVD
  • 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n compliant)
  • 1 x SLI HB BRIDGE(2-WAY-M)
  • 1 x ROG big sticker
  • 1 x Q-Connector
  • 1 x 10-in-1 ROG cable label
  • 1 x Extension Cable for RGB strips (80 cm)
  • 1 x 3D printing mount package
  • 1 x ROG coaster(s)
• BIOS
  • 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS,
  • ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log,
  • F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information
  • Manageability
  • WfM 2.0, WOL by PME, PXE
• Support Disc
  • Drivers
  • AURA
  • ROG GameFirst IV*5
  • ROG RAMDisk
  • ROG RAMCache II
  • ROG CPU-Z
  • ROG Mem TweakIt
  • ROG Keybot II
  • Sonic Studio III
  • Sonic Radar III
  • Overwolf
  • CloneDrive
  • Kaspersky® Anti-Virus
  • DAEMON Tools Software
  • Winzip
• ASUS Utilities
  • Operating System Windows® 10 64-bit
• Form Factor
  • ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
• Note
  • *1 Due to CPU limitation, NVIDIA® 2-Way SLI™ Technology is not supported for AMD 7th Gen A-series/Athlon™ Processors.
  • *2 PCIeX4_3 slot shares bandwidth with PCIeX1_1, PCIeX1_2 and PCIeX1_3.
  • *3 Support for the Bluetooth specification depends on the Windows version. Win7/8.1 support up to Bluetooth 4.0.
  • *4 Due to limitations in HDA bandwidth, 32-bit/192kHz is not supported for 8-Channel audio and due to Windows 7 limitations, 32-bit playback is unavailable for Windows 7.
  • *5 ROG GameFirst Technology is only available for Windows 10/8.1 64-bit
